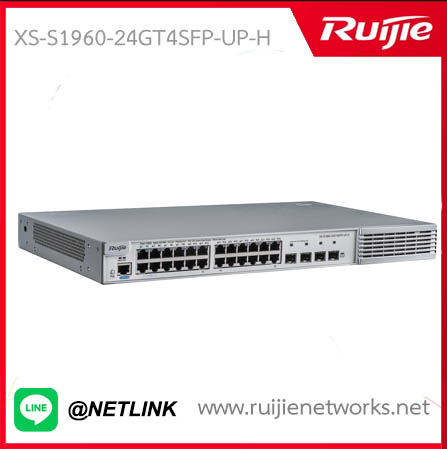

L2+ Full Managed รุ่น XS-S1960-24GT4SFP-UP-H

Product Model

XS-S1960-10GT2SFP-P-H

XS-S1960-24GT4SFP-H

XS-S1960-24GT4SFP-UP-H

XS-S1960-48GT4SFP-H

Ports

10/100/1000BASE-T

10

24

24

48

1000M SFP

2

4

4

4

Power over Ethernet

PoE

✓

n/a

✓

n/a

PoE/PoE+
 Enabled Ports

8

/

24

n/a

H-PoE Enabled Ports

n/a

n/a

4

n/a

IEEE802.3bt
(H-PoE)

n/a

n/a

✓

n/a

IEEE802.3af
(PoE)

✓

n/a

✓

n/a

IEEE802.3at
(PoE+)

✓

n/a

✓

n/a

PoE Power Budget

125W

n/a

370W

n/a

Physical

Packet Buffer

12Mbit

12Mbit

12Mbit

12Mbit

CPU Memory

512MB

512MB

512MB

512MB

Flash

256MB

256MB

256MB

256MB

Dimensions(WxDxH)

340x260x43.6mm

440x260x43.6mm

440x260x43.6mm

440x260x43.6mm

Unit Weight

2.5kg

3.5kg

5.5kg

4kg

Power Supply

Type

Internal

Internal

Internal

Internal

Frequency

50/60Hz

AC Voltage

100~240V

AC Current

2A

0.6A

6.8A

1.5A

Rated HVDC voltage

240V DC

Maximum HVDC voltage

192~290V DC

Maximum Power Rating

165W

24W

460W

40W

Cooling

Fanless

Fanless

Fan

Fan

Certifications

Safety

EN 60950-1

EMC

EN 300 386

Emissions

EN 55032

Immunity Generic

EN 55024

ESD

EN 61000-4-2

Radiated

EN 61000-4-3

EFT/Burst

EN 61000-4-4

Surge

EN 61000-4-5

Conducted

EN 61000-4-6

Power frequency magnetic field

EN 61000-4-8

Voltage dips and interruptions

EN 61000-4-11

Harmonics

EN 61000-3-2

Flicker

EN 61000-3-3

RoHS

✓

✓

✓

✓

EEE

✓

✓

✓

✓

Operating Temperature

0 ℃ ~ 45 ℃

Storage Temperature

-40 ℃ ~ 70 ℃

Operating Humidity

10%~90% RH

Storage Humidity

5%~95% RH

Operating Altitude

-50m ~ 5000m

MTBF(hours)

590278

602365

361712

524960

Warranty

3-Year Warranty Free of Charge

Package Contents

Ruijie XS-S1960-H Series Switch
Power Cord
Mounting Kit
Rubber Feet
Console Cable
RJ45-RJ45 UTP Cable
Grounding Cable
Quick Start Guide

Performance

Switching Capacity

24Gbps

56Gbps

56Gbps

104Gbps

Forwarding Rate

18Mpps

42Mpps

42Mpps

78Mpps

ARP Table Size

500

1K

1K

1K

MAC Table Size

16K

16K

16K

16K

L2 Switching

STP

✓

RSTP

✓

MSTP

✓(64 instances)

Port Grouping

✓(LACP)

VLAN

✓(IEEE802.1Q/MAC VLAN/Private VLAN/Protocol VLAN/Voice VLAN)

GVRP

✓

IGMP Snooping

✓((v1/v2/v3)/SGVL/IVGL/IGMP filter/IGMP fast leave)

Jumbo Frame

9KB

QinQ

✓

G.8032/ERPS

✓

L3

IPv4 Routing

Static/RIP/OSPFv1/v2/VRRP

IPv6 Routing

Static/RIPng/OSPFv3/ND(Neighbor Discovery)/VRRPv3/VRRP+

Ping

✓ (IPv4 and IPv6)

Traceroute

✓ (IPv4 and IPv6)

DHCP

✓ (Server/Client/Relay)

ARP Features

✓(ARP Proxy/Trusted ARP/ARP-Based IP Guard/Gratuitous ARP/ARP-Check/)

Reliability

VSU

n/a

✓ (up to 4 members)

GR

✓

REUP

✓

RLDP

✓

DLDP

✓

Security

CPP

✓

NFPP

✓

SSH

✓

SSL

✓

IEEE802.1X

✓

Port Security

✓

Radius

✓

TACACS+

✓

DAI

✓

IP-MAC Binding

✓

ACL

✓ (IPv4 and IPv6, Standard IP ACL, Extended IP ACL, MAC-extended ACL, Time-based ACL, Expert ACL, ACL80, IPv6 ACL, SVI router ACL, ACL logging, ACL counter, ACL remark, ACL redirection, Security channel, Protected port)

IP Source Guard

✓ (IPv4 and IPv6)

DHCP Snooping

✓ (IPv4 and IPv6)

QoS

Stream classification

✓ (Classification based on IEEE802.1p/DSCP/TOS)

Shaping

✓ (Rate-limit on ingress/egress traffic on interface)

Congestion avoidance

✓ (RED, WRED, Tail drop)

Congestion management

✓(SP, WRR, DRR, WFQ, SP+WFQ, SP+WRR, SP+DRR, 8 queue priorities per port)

Management

Web User Interface

✓

HTTP/HTTPS

✓

Ruijie Cloud Management

✓

RG-SNC Management

✓

Command Line Interface

Telnet/Console

SNMP

✓

Smart+ for CCTV

✓(Auto Smart Deployment/Remote Reboot Helper)

SYSLOG

✓

NTP

✓

DNS

✓

SPAN

✓

RSPAN

✓

ERSPAN

✓

Public MIBs

✓

Private MIBs

✓

RMON

✓(1/2/3/9)

sFlow

✓

Firmware Upgrade

✓

Port Mirroring

✓
