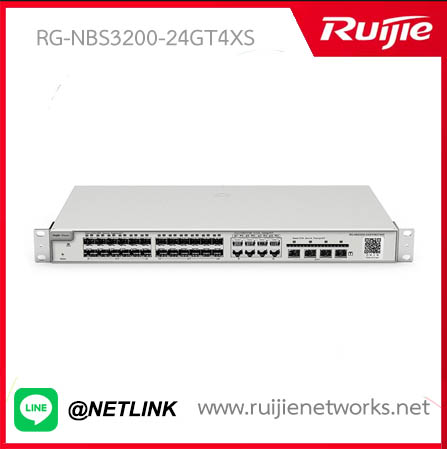

Reyee L2 Cloud Managed Switch รุ่น RG-NBS3200-24GT4XS

Model

RG-NBS3200-24GT4XS

RG-NBS3200-48GT4XS

RG-NBS3200-24SFP/8GT4XS

RG-NBS3200-24GT4XS-P

RG-NBS3200-48GT4XS-P

Fixed ports

24 10/100/1000Base-T ports, 4 SFP+ 10GBase-X ports, fixed single AC power supply

48 10/100/1000Base-T ports, 4 SFP+ 10GBase-X ports, fixed single AC power supply

24 SFP ports (SFP: 100/1000M ports), 8 combo 10/100/1000Base-T ports, 4 SFP+ 10GBase-X ports

24 10/100/1000Base-T ports (802.3 af/at compliant), 4 SFP+ 10GBase-X ports

48 10/100/1000Base-T ports (support PoE and PoE+), 4 SFP+ 10GBase-X ports

Switching capacity

336Gbps

336Gbps

336Gbps

336Gbps

Packet forwarding rate

96Mpps

132Mpps

96Mpp

RG-NBS3200-24GT4XS-P 96Mpps

RG-NBS3200-48GT4XS-P

132Mpps

MAC address

Support static MAC address, MAC address filtering

MAC address table size

16K

Number of VLANs

4094

Link aggregation

Support

Port mirroring

Many-to-one mirroring

Spanning tree

STP, RSTP

LLDP

Support

IP routing

N/A

ACL

IP standard ACL

MAC extended ACL

IP extended ACL

Port ACL for Layer 2 ports (physical port / AP)

QoS

Port-based speed limit (ingress/egress)

Security

Port protection

Hardware CPP

Management

Web management, Ruijie Cloud or Ruijie Cloud app management

DHCP

DHCP snooping

EEE

Support

Physical specifications

Dimensions

440x207.5x43.6mm

440×267.5×43.6mm

440x357.6x43.6mm

PoE

N/A

24/48 Base-T ports (support PoE and PoE+)

Maximum PoE / PoE+ output power per switch: 370W

Maximum output power per port: 30W

Temperature

Operating temperature: 0 ℃ ~ 50 ℃

Storage temperature: -40 ℃ ~ 70 ℃

Humidity

Operating humidity: 10% ~ 90% RH

Storage humidity: 5% ~ 90% RH
