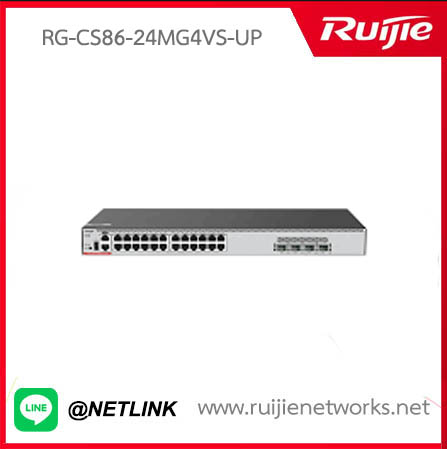

RG-CS86 Multi-G HPOE (L3, ACCESS/Aggregation Switches) รุ่น RG-CS86-24MG4VS-UP

Hardware Specifications

RG-CS86-24MG4VS-UP

RG-CS86-48MG4VS2QXS-UPD

RG-CS86-24XMG4XS4VS-UPD

Interface Specifications

Fixed Service Port

24 x 100M/1000M/2.5GE/5GE electrical ports with auto-negotiation
4 x 10GE/25GE SFP28 ports

48 x 100M/1000M/2.5GE/5GE electrical ports with auto-negotiation
4 x 10GE/25GE SFP28 ports + 2 x 40GE QSFP+ ports

24 x 100M/1000M/2.5GE/5GE/10GE electrical ports with auto-negotiation

4 x 1G/10GE SFP+ ports

4 x 10G/25G SFP28 ports

Fan modules

2 fixed fans

3 modular fans

3 modular fans

Power modules

1 Built-in power module

2 replaceable hot-swappable power supply slots

2 replaceable hot-swappable power supply slots

Fixed Management Port

1 x MGMT port

1 x console port

1 x USB port

1 x MGMT port

1 x console port

1 x USB port

1 x MGMT port

1 x console port

1 x USB port

System Specifications

Switching Capacity

440 Gbps/2.56Tbps

840 Gbps/2.56Tbps

760Gbps/2.56Tbps

Packet Forwarding Rate

(Actual)

327 Mpps

625 Mpps

565 Mpps

MAC Table Capacity

32,768

ARP table

16,000

IPv4 Unicast Routes

16,000

IPv4 Multicast Routes

4,000

IPv6 Unicast Routes

16,000

IPv6 Multicast Routes

2,000

ACL entries

In: 2,500

Out:1,000

Dimensions and Weight

Dimensions (W x D x H)

442 × 220 × 43.6 mm (17.40 × 29.92 × 6.89 in.) , 1 RU

442 × 220 × 43.6 (17.40 × 29.92 × 6.89 in.) , 1 RU

442 × 220 × 43.6 (17.40 × 29.92 × 6.89 in.) , 1 RU

Weight

3.65 kg (8.82 lbs)

6.11 kg (13.47 lbs)

6.11 kg (13.47 lbs)

Power Supply and Consumption

Typical Power Consumption

Without PoE: < 110 W (Total power consumption of all modules)

Full PoE load: < 370 W (Total power consumption of all modules)

Without PoE: < 200 W (Total power consumption of all modules)

Full PoE load: < 1600 W (Total power consumption of all modules)

Without PoE: < 150 W (Total power consumption of all modules)

Full PoE load: < 1650 W (Total power consumption of all modules)

Power Module Model

Built-in power module

RG-PA600I-P-F

RG-PA1000P-F

RG-PA600I-P-F

RG-PA1000P-F

Rated Input Voltage

Built-in power module

AC input

Rated voltage range: 100 V AC to 240 V AC

Maximum voltage range: 90 V AC to 264 V AC

Frequency: 50/60 Hz

Rated current per circuit: 6 A

Available model: RG-PA600I-P-F

AC Input

Rated voltage range: 100 V AC to 240 V AC

Maximum voltage range: 90 V AC to 264 V AC

Frequency: 50/60 Hz

Rated current per circuit: 8 A

Available model: RG-PA1000I-P-F

AC Input

Rated voltage range: 100 V AC to 240 V AC

Maximum voltage range: 90 V AC to 264 V AC
Frequency: 50/60 Hz

Rated current per circuit: 8 A

Available model: RG-PA600I-P-F

AC Input

Rated voltage range: 100 V AC to 240 V AC

Maximum voltage range: 90 V AC to 264 V AC

Frequency: 50/60 Hz

Rated current per circuit: 8 A

Available model: RG-PA1000I-P-F

AC Input

Rated voltage range: 100 V AC to 240 V AC

Maximum voltage range: 90 V AC to 264 V AC
Frequency: 50/60 Hz

Rated current per circuit: 8 A

PoE-capable Port

Ports 1 to 24 support PoE/PoE+ and HPoE power supply
Maximum output power of a HPoE-capable port: 90 W

Ports 1 to 48 support PoE/PoE+ power supply
Ports 1 to 24 support HPoE power supply
Maximum output power of a HPoE-capable port: 90 W

Ports 1 to 24 support PoE/PoE+ and HPoE power supply
Maximum output power of a HPoE-capable port: 90 W

Environment and Reliability

Surge Protection

6 kV

6 kV

6 kV

Temperature Monitoring

Temperature alarm

Temperature alarm

Temperature alarm

Operating Temperature

0°C to 45°C (32°F to 113°F)

0°C to 45°C (32°F to 113°F)

0°C to 45°C (32°F to 113°F)

Storage Temperature

–40°C to +70°C (–40°F to +158°F)

–40°C to +70°C (–40°F to +158°F)

–40°C to +70°C (–40°F to +158°F)

Operating Humidity

10% RH to 90% RH (non-condensing)

10% RH to 90% RH (non-condensing)

10% RH to 90% RH (non-condensing)

Storage Humidity

5% RH to 95% RH (non-condensing)

5% RH to 95% RH (non-condensing)

5% RH to 95% RH (non-condensing)

Software Specifications

RG-CS86-24MG4VS-UP

RG-CS86-48MG4VS2QXS-UPD

RG-CS86-24XMG4XS4VS-UPD

Ethernet Switching

Jumbo frame (maximum length: 9216 bytes)

IEEE 802.1Q (supporting 4K VLANs)

Voice VLAN

Super VLAN, Private VLAN

MAC VLAN, Port based VLAN, Protocol based VLAN, IP-Subnet based VLAN

GVRP

Basic QinQ

Flexible QinQ

STP, RSTP, and MSTP

ERPS (G.8032)

LLDP/LLDP-MED

LACP (IEEE 802.3ad)

IP Service

ARP

DHCP client, DHCP relay, and DHCP server

DHCP snooping

DNS

DHCPv6 client and DHCPv6 relay

DHCPv6 snooping

Neighbor Discovery (ND) and ND snooping

IP Routing

Static routing

RIP and RIPng

OSPFv2, OSPFv3, IS-ISv4, ISv4, and IS-ISv6

BGP4 and BGP4+

IPv4 and IPv6 PBR

ECMP

Multicast

IGMP v1/v2/v3, and IGMP proxy

IGMP v1/v2/v3 snooping

PIM-DM, PIM-SM, and PIM-SSM

MSDP

MLD v1/v2

MLD snooping v1/v2

PIM-SMv6 and PIM-SSM v6

ACL and QoS

Standard IP ACLs

Extended IP ACLs

Extended MAC ACLs

Time-based ACLs

Expert-level ACLs

ACL80

IPv6 ACL

Port traffic rate limiting

Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ

Congestion avoidance: tail drop, RED, and WRED

802.1p/DSCP/ToS traffic classification

Eight priority queues per port

Security

Multiple AAA modes

RADIUS and TACAS+

Port-based and MAC-based 802.1x authentication

Web authentication

HTTPS

SSHv1, SSHv2

Global IP-MAC binding

IP source guard

SAVI

CPP and NFPP

Strict and loose RPF

uRPF ignoring default routes

Reliability

REUP, RLDP, DLDP

IPv4 VRRP v2/v3 and IPv6 VRRP

BFD

GR for RIP, OSPF, BGP

1+1 power redundancy

Hot swapping of power and fan modules

Device virtualization

Virtual Switching Unit (VSU)

NMS and maintenance

SPAN, RSPAN, and ERSPAN

sFLOW

NTP and SNTP

FTP and TFTP

SNMP v1/v2/v3

RMON (1, 2, 3, 9)

NETCONF

CWMP (TR-069) standard protocol

gRPC

Cloud and SON

PoE

IEEE 802.3af, 802.3at and 802.3bt

Uninterruptible power supply upon hot start

Port priority

Model

Description

RG-CS86-24MG4VS-UP

24 x 100M/1000M/2.5GE/5GE electrical ports with auto-negotiation
4 x 10GE/25GE SFP28 ports ,support PoE/PoE+/PoE++

fixed AC power supply and fan

RG-CS86-48MG4VS2QXS-UPD

48 x 100M/1000M/2.5GE/5GE electrical ports with auto-negotiation

4 x 10GE/25GE SFP28 + 2 x 40GE QSFP+ ports, support PoE/PoE+/PoE++(25-48 ports only support PoE/PoE+)

 2 modular power supply slots (at least one RG-PA600I-P-F/ RG-PA1000I-P-F power module needed,no power module in default),3 modular fan slots (3 fan modules are equipped by default)

RG-CS86-24XMG4XS4VS-UPD

24 x 100M/1000M/2.5GE/5GE/10GE electrical ports with auto-negotiation, 4 x 1G/10GE SFP+ ports ,4 x 10G/25G SFP28 ports,support PoE/PoE+/PoE++

2 modular power supply slots (at least one RG-PA600I-P-F or RG-PA1000I-P-F power module needed,no power module in default),3 modular fan slots (3 fan modules are equipped by default)

RG-PA600I-P-F

600 W AC power module

RG-PA1000I-P-F

1000 W AC power module

Model

Description

Mini-GBIC-GT

1000BASE-GT mini GBIC module

Model

Description

XG-SFP-SR-MM850

10GE SR, SFP+ transceiver, LC, 850-nm wavelength, applicable to SFP+ port
62.5 μm/125 μm : 33 m over MMF
50 μm/125 μm: 66 m over MMF
2000 MHz·km: 300 m over MMF

XG-SFP-LR-SM1310

10GE LR, SFP+ transceiver, LC, 1310-nm wavelength, 10 km over SMF, applicable to SFP+ ports

XG-SFP-ER-SM1550

10GE ER, SFP+ transceiver, LC, 1550-nm wavelength, 40 km over SMF, applicable to SFP+ ports

XG-SFP-AOC1M

10GE SFP+ active optical cable, 1 m, including one cable and two interface modules

XG-SFP-AOC3M

10GE SFP+ active optical cable, 3 m, including one cable and two interface modules

XG-SFP-AOC5M

10GE SFP+ active optical cable, 5 m, including one cable and two interface modules

Model

Description

VG-SFP-SR-MM850

25GE SR, SFP28, 850-nm wavelength, 100 m over MMF

VG-SFP-LR-SM1310

25GE LR, SFP28, 1310-nm wavelength, 10 km over SMF

VG-SFP-AOC5M

25GE SFP+ active optical cable, 5 m, including two modules

Model

Description

40G-QSFP-SR-MM850

40GE SR, QSFP+ transceiver, applicable to QSFP+ ports
OM3 and OM4 MMF, MPO, 8-core, 850-nm wavelength, 100 m over OM3 MMF or 150 m over OM4 MMF

40G-QSFP-LR4 SM1310

40GE LR4, QSFP+ transceiver, LC, 1310-nm wavelength, 2-core, 10 km over SMF, applicable to QSFP+ ports

40G-AOC-5M

40GE QSFP+ active optical cable, 5 m, including one cable and two interface modules

40G-AOC-10M

40GE QSFP+ active optical cable, 10 m, including one cable and two interface modules
